Kapton Alternative PET Tape
Description

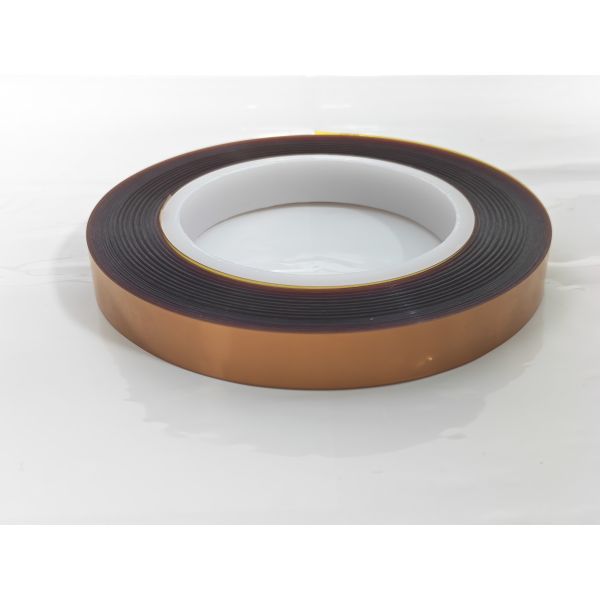

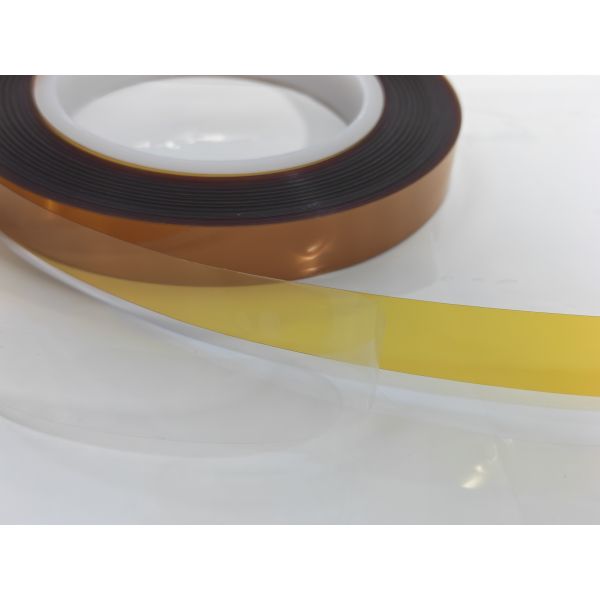

SP-PX130 is a 130µm high-temperature double-sided gold finger tape with PET backing and silicone adhesive. It offers strong adhesion, heat resistance, and reusability, ideal for bonding and protection in electronics and battery applications.
Applications
- Bonding and insulation of electromagnetic wires and cables
- Motor coil insulation and high-temperature protection
- Mobile phone lithium battery cell bonding and wrapping
- High-temperature soldering and reflow process masking
- Protection of electronic components during wave soldering
- Bonding and heat dissipation in power electronic devices
Physical Parameters
| Item |
Specification |
Standard |
| Total Thickness |
130±5µm |
GB/T7125-2014 |
| Dry Coating Thickness |
95±5µm |
GB/T7125-2014 |
| Adhesion Strength (A) |
800-1000g/25mm (180°) |
GB-T2792-2014 |
| Adhesion Strength (B) |
800-1000g/25mm (180°) |
GB-T2792-2014 |
| Temperature Resistance |
180°C for 30 minutes |
Oven test |
| Backing Material |
PET (Polyester film) with fluoroplastic layer |
Visual & Physical Test |
Company Introduction
Sanfeng Win New Material (Jiangsu) Co., Ltd. (hereinafter referred to as Sanfeng Win) was established in 2010. It is a private enterprise integrating R&D, production and sales of adhesive products, with industry-leading coating technology and a professional R&D team. The company specializes in the production of high-temperature resistant tapes, optical protective films, new energy battery blue films, aerogel packaging hot-pressing films, photovoltaic perforated tapes, photovoltaic backsheets and other products, which are widely used in electronics, mobile phone screens, PCB, powder spraying, insulation, die-cutting, printing plastics, battery cell aluminum case wrapping, FPC, new energy, photovoltaic and other industries.
To ensure product quality requirements, the company is equipped with precision coating equipment and professional R&D and technical talents.
The company has a high-purification clean workshop and a multi-functional composite precision coating production line, providing customers with R&D, design schemes and market application feedback, and can put into independent mass production services.
FAQ
1.What is the total thickness of SP-PX130?
130±5µm, compliant with GB/T7125-2014.
2.What is its temperature resistance?
Withstands 180°C for 30 minutes in an oven test.
3.Does it leave residue after removal?
No, it is designed for residue-free peeling and reusability.
4.What is the adhesion strength?
800-1000g/25mm; B: 800-1000g/25mm (180° peel), per GB-T2792-2014.
5.What is the dry coating thickness?
95±5µm, compliant with GB/T7125-2014.
6.What is the backing material of this tape?
It uses PET (polyester film) with a fluoroplastic layer for excellent insulation.
